Best KVM Switches for Two PCs, Dual Monitors, and Rack Work

A KVM switch lets one keyboard, video display, and mouse control more than one computer. Modern models may also share audio, USB storage, webcams, network access, and two or more monitors. That added scope makes the buying process less forgiving. A switch can advertise 4K video and still fail the reader's layout because the computers, cables, dock, monitors, and KVM do not share the same ports or display rules.

Quick comparison

*US prices posted on manufacturer pages and checked July 16, 2026. Seller prices, kits, and stock can change.

How the KVM switches were selected

The comparison uses published port counts, display layouts, maximum stated resolution, USB hub capability, switching methods, included cables, warranty or support information, and current posted prices. It does not claim measured input lag, firmware testing, or long-term reliability. A KVM switch is ranked by fit for a real setup, not by the largest resolution printed in the title.

The first check is topology: number of computers, number of displays, and whether every display should follow the selected computer. The second is signal fit: HDMI, DisplayPort, or USB-C, plus the resolution and refresh rate used by every screen. The third is peripheral behavior. A basic keyboard-and-mouse path needs little bandwidth; a camera, SSD, or capture device needs a real USB 3.x hub.

Five KVM switch picks

Match video and USB ports before buying

Write down the physical port on every computer and monitor. HDMI and DisplayPort are not interchangeable labels for the same signal path. USB-C adds another layer: some ports carry data only, some carry DisplayPort Alternate Mode, and some support Thunderbolt. A USB-C connector shape does not promise video or charging.

Count outputs per computer. Two monitors often require two video connections from each computer. A laptop dock may create them, but operating-system and hardware limits still apply. Apple and Windows laptops with the same connector can support different external-display counts.

For peripherals, separate HID ports from hub ports. HID ports are tuned for keyboards and mice and may use emulation for fast switching. A shared SSD, camera, or audio interface needs a hub with enough USB speed and power.

EDID, refresh rate, and switching delay

EDID is the display information a monitor gives a computer. A KVM with EDID emulation can keep a display identity present when the computer is not selected. That may reduce rearranged windows and long display renegotiation. It does not guarantee that every graphics card, dock, monitor, and sleep state will behave the same way.

Resolution and refresh rate work as a pair. A switch may support 4K at 60 Hz but not 4K at 144 Hz. Color depth, chroma format, HDR, cable length, and adapter bandwidth can lower the working mode. Check the exact mode in the product table, not the largest headline number.

This article does not report measured input lag. A hardware KVM usually passes video rather than encoding it, but USB polling, display renegotiation, emulation, and firmware can affect the experience. Buyers with gaming, color-critical, or latency-sensitive work should test during the return window.

A setup checklist that prevents most KVM mistakes

1. Draw every computer, monitor, and USB device.
2. Label each physical port and required display mode.
3. Confirm the computer can drive the requested number of displays without the KVM.
4. Use the included cables first, then certified cables within the stated length.
5. Connect keyboard and mouse to the dedicated HID ports.
6. Turn on EDID emulation when the model supports it and window movement is a problem.
7. Test sleep, wake, restart, hotkeys, audio, and every display before routing cables permanently.

A dual monitor KVM decision tree

Start with the number of computers. A two-port KVM switch handles two computers. A four-port unit costs more and creates a larger cable bundle, so unused ports are not free headroom. Count the monitors after that. A dual monitor KVM switch has to manage two display signals for each selected computer. If only one monitor should switch and the other stays dedicated, a one-monitor KVM plus the monitor's own input control may be cheaper.

Write the port path for each screen: HDMI to HDMI, DisplayPort to DisplayPort, or USB-C through a documented dock. A mixed HDMI DP system can work when the KVM provides those exact inputs. Random adapters create extra failure points and may limit refresh rate, HDR, or wake behavior.

Then count shared USB devices. A keyboard and mouse can use HID ports. A webcam, microphone, card reader, printer, and storage drive need enough hub ports and bandwidth. If peripherals should stay with one computer while the monitors switch, look for independent USB focus. That feature turns the KVM into a more useful USB switch without forcing every device to follow the screen.

USB-C laptops and docking stations

A USB-C label does not state the display count, charging wattage, or data speed. Check whether the laptop port supports DisplayPort Alternate Mode or Thunderbolt, then check how many external displays the laptop and operating system can drive. Some laptops expose one display stream even when a dock has two sockets.

A USB-C KVM with Power Delivery can reduce desk clutter, but its stated wattage must meet the laptop's need. Lower power may charge slowly or allow the battery to fall under load. A desktop KVM without USB-C can still serve a laptop through a dock when the dock exposes supported HDMI or DisplayPort outputs and a USB data connection.

Do not assume that two HDMI cables from a dock mean two independent displays. DisplayLink docks use software and compression; MST docks depend on system support; Thunderbolt docks follow their own bandwidth rules. Test the dock and two monitors without the KVM before adding another layer.

Desktop KVM or rack KVM

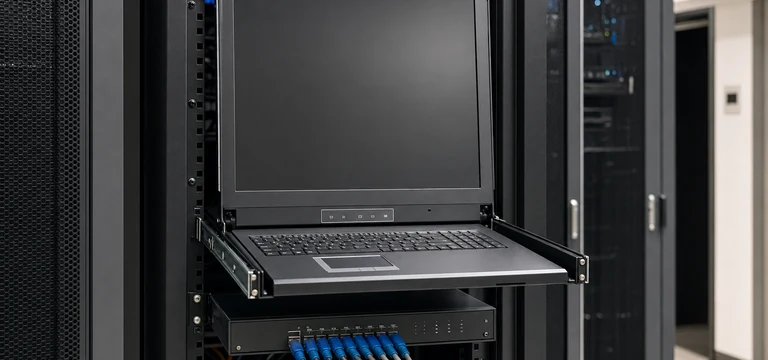

A desktop KVM is built around one seated user. Buttons, a wired remote, or a keyboard shortcut select the computer. A rack KVM may serve several headless systems in a lab or server rack and may add rack ears, serial control, remote IP access, or a fold-out console.

Remote KVM over IP changes the security model because console access travels over a network. Require encryption, access control, updates, audit records, and a recovery path that fits the organization. A low-cost desktop unit is not a substitute for managed remote console access.

HDMI cables, DisplayPort cables, and desk layout

A KVM switch can double the normal cable count. Two computers and two monitors may need four computer-side video cables, two monitor cables, two USB host cables, power, audio, and several shared USB leads. Measure the path before buying short included cables or long replacements.

Use HDMI cables or DisplayPort cables rated for the required bandwidth and keep adapters to a minimum. Label both ends by computer and display. Route power away from fragile connector strain, leave airflow around the switch, and place the remote or front controls where the user can reach them without pulling the cable bundle.

Keyboard shortcut switching is convenient, but record the hotkey and escape sequence near shared workstations. If the keyboard is not recognized in the emulated port, test the KVM's generic USB port or physical button. Mouse switching can also depend on emulation mode and a basic three-button wheel mouse.

Connect both computers, every monitor, and each shared USB device before routing the cables. Switch between systems and confirm that the displays return at the expected resolution and refresh rate. A dock, adapter, long cable, or display firmware can change the result even when the KVM itself meets its published specification.

When a KVM switch is the wrong tool

Software remote desktop may fit systems that are always online and do not need BIOS access. A USB sharing switch may fit when each computer already has its own monitor. A monitor with several inputs can handle occasional video switching. Buy a KVM when physical console control solves a repeated job that those simpler paths cannot.

Cost and value

Basic one-monitor cable switches can cost well under the dual-monitor models. A modern two-computer dual-monitor KVM with 4K 60 Hz, EDID, and USB 3.0 sits around $240 in this comparison. Four-computer dual-monitor units range from about $460 to $850.

Included cables matter. Eight video cables, four USB cables, and a power supply can represent a meaningful part of a four-port kit. A cheaper bare switch may cost more after known-good cables and adapters are added. Paying for USB-C charging, network ports, or a high-refresh mode is sensible only when the connected systems can use it.

Questions readers ask

Can one KVM switch run two monitors?

Yes, when the model is built for a dual-monitor layout and every computer supplies the required video paths. A one-monitor KVM does not gain a second independent display by using an HDMI splitter.

Will a KVM charge a USB-C laptop?

Only models that state a USB-C Power Delivery wattage can provide meaningful laptop charging. Many USB-C KVM ports carry data and video but little or no charging power.

Do hotkeys work with every keyboard?

No. Hotkey detection often depends on the dedicated keyboard port and its emulation. Wireless receivers, gaming keyboards, and unusual layouts may need a generic USB hub port or front button instead.

Why do windows move after switching?

The computer may think the monitor disconnected when its input changed. EDID emulation or display-persistence software can help, but behavior varies by graphics driver, dock, operating system, and KVM.

Which KVM switch fits your setup?

• For two computers and two monitors, choose a dual-monitor KVM that accepts every video output each computer must supply.
• Match HDMI, DisplayPort, or USB-C ports directly when possible. Adapters can change resolution, refresh rate, EDID, and wake behavior.
• Count the keyboard, mouse, webcam, storage, and audio connections. A basic USB switch may be enough when each computer already has its own monitor.
• Choose the front button, remote switch, or keyboard shortcut you will actually use, then check whether the needed HDMI cables or DisplayPort cables are included.

A KVM switch should not add visible input lag in ordinary office work, but high-refresh gaming and color-sensitive displays need the exact mode confirmed before purchase.

Sources

• TESmart two-computer dual-monitor P-series specifications and posted price, checked July 16, 2026.
• StarTech P4DD46A2 specifications and posted price, checked July 16, 2026.
• ATEN CS1922 specifications, checked July 16, 2026.
