Best Rack-Mount UPS Choices for Servers and Network Gear

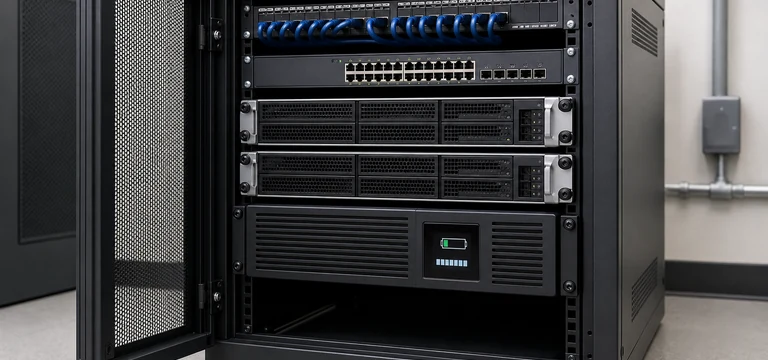

A rack mount UPS is an uninterruptible power supply built to support servers and network equipment in a standard rack. It supplies battery backup during short power outages and gives systems time to shut down during a long one. Depending on topology, a UPS unit may also correct voltage fluctuations or continuously recreate the output waveform. The label on the front does not settle whether it can carry a rack server, storage array, switch, and their startup behavior.

A standby generator and a rackmount UPS solve different timing problems. The generator can support a site during a sustained outage, but it needs time to start and stabilize. The uninterruptible power supply bridges that gap and supports shutdown if generator power never arrives. Data centers and edge racks may therefore use a UPS, generator, transfer equipment, and rack PDU as separate parts of one documented power path.

Rackmount UPS topology and power quality

Standby

A standby UPS normally passes utility power to the load and switches to its inverter when input power fails or leaves its permitted range. This low-cost design fits desktop equipment and very small loads. Rack systems usually need better management, output, capacity, and service options than basic standby products provide.

Line-interactive

A line-interactive UPS can correct some high or low input voltage without using the battery, then transfers to battery when needed. It offers good efficiency and value for network closets, small servers, and office racks with generally stable power. Transfer behavior and output waveform differ by model, so check compatibility with the equipment power supplies.

Online double-conversion

An online UPS converts incoming AC to DC and then creates AC output through its inverter during normal operation. It can isolate the load from a wider range of input conditions and has no normal transfer interval to battery mode. The tradeoffs are higher purchase cost, more heat, fan noise, and energy loss. An internal bypass can carry the load around the inverter during an overload or fault, but bypass conditions must match the site design.

Pure sine wave output

Many current server power supplies expect a clean sine wave and active power-factor-correction behavior. Prefer a rack mountable UPS with manufacturer-documented sine wave output for server loads, and check output total harmonic distortion where the datasheet publishes it. Do not assume a marketing phrase guarantees compatibility: verify the exact UPS model against the supported power equipment and ask the server or UPS maker when the load is unusual.

Quick comparison

Research method and limits

The comparison uses current manufacturer specifications, manuals, runtime tools, topology descriptions, rail information, battery details, and management features. No UPS was load-banked, opened, thermally measured, or timed on battery for this article. Published runtime is a planning input, not a promise for every battery age, temperature, or load pattern.

An electrician or facility engineer should confirm the branch circuit, plug, receptacle, grounding, bypass, generator, and emergency-power design. Medical, life-safety, industrial-control, and other regulated uses require equipment and engineering fitted to those systems.

The buying criteria are topology, rated watts and VA, runtime curves, efficiency, sine wave output, transfer behavior, input plug, output receptacles, rack units, mounting depth, rail kit, UPS battery chemistry, replacement method, network management card support, shutdown software, bypass options, certifications, warranty, and service availability. Candidate models are ranked by fit for a stated load rather than brand recognition or the largest advertised capacity.

UPS capacity planning: watts, VA, and runtime curves

UPS ratings normally include volt-amperes and watts. The load capacity must stay within both limits. Watts describe real power, while VA describe apparent power; their relationship depends on power factor. Add the expected real power of every connected server, switch, storage unit, console, and network appliance. Use measured operating and peak data when available. Nameplate values can be conservative, but casual guesses can miss a high startup or workload peak.

Leave operating margin for peaks, battery aging, reasonable expansion, and model guidance. Oversizing far beyond the plan raises cost and can put the unit on an input circuit the room does not have. Undersizing can trigger an overload, force bypass, shorten runtime, or shut down the load at the worst moment.

Battery runtime is a curve, not one number

A product page may advertise a runtime without placing the load beside it. Runtime falls sharply as load rises. Use the maker's graph or calculator at the planned watt load. Check whether the result includes fresh internal batteries, external battery modules, a particular output voltage, and a stated power factor.

Define the job before choosing minutes. A local rack may need enough time for automatic shutdown. A site with a generator may need bridge time plus margin for start and transfer. A network rack may need longer service so phones, access control, or connectivity remain available after servers have stopped.

A runtime claim without its load is not useful for UPS system selection. Compare the curve at today's measured watts and at the planned future load, then allow for battery aging and temperature within the manufacturer's guidance. Extra VA does not automatically provide the needed backup time; inverter capacity and battery capacity are related but different specifications.

External battery modules

Some UPS families accept matched external battery modules. They can extend runtime without increasing the inverter's watt capacity. Each module adds rack units, depth, weight, cabling, replacement cost, and charging time. Confirm the permitted module count and whether the rack can support the full stationary and sliding load.

Rack mount, rail, thermal, and electrical fit

Put weight low in a four-post rack

Rack UPS units are dense. Even a 2U model can weigh far more than a server of similar height. Mount batteries near the bottom in a stable four-post rack using the listed rails or shelf. Do not rely on front ears alone unless the manufacturer explicitly approves that mounting method.

Measure chassis depth, rail adjustment range, rear plug length, cable bend, and front battery-removal clearance. A UPS can be shorter than the cabinet yet have rails that do not span its post spacing. Check door and side-channel clearance for output cords and a network card.

Input voltage and plug

Common rack models use 120V, 208V, 230V, or a selectable range. Higher-capacity units may need a locking 20A or 30A receptacle or a hardwired feed. The building source, UPS input, bypass source, output, PDU, and equipment power supplies must form one compatible path.

Do not plan around an adapter that changes the shape of an incompatible connection. An adapter does not change voltage, conductor rating, protection, or code requirements. Facility work can cost more than the UPS, so confirm it before ordering.

Output receptacles and load groups

Count output sockets and match their type. IEC C13 and C19 outlets are common on rack UPS units; North American versions may use 5-15R, 5-20R, or locking receptacles. Programmable load groups can turn off noncritical equipment to preserve runtime for core systems. They can also stage restart after power returns.

Do not connect laser printers, heaters, motors, or other high-inrush loads unless the UPS maker approves the use. Do not place an ordinary surge strip downstream unless the UPS documentation permits it. Use a compatible rack PDU when more outlets or vertical distribution are needed.

Three established rack UPS families

UPS management software and automatic shutdown

A UPS helps only when systems respond before the battery is empty. USB or serial communication can shut down one host. A network management card can serve several systems, issue alerts, expose status to monitoring, and coordinate virtual hosts. Test the full chain with a controlled maintenance event: alert, timer, guest shutdown, host shutdown, low-battery action, and restart policy.

Check that the management software supports the operating systems, hypervisors, authentication method, and network protocols in use. Useful features include event logs, battery-health data, remote alerts, SNMP or Modbus where required, and a supported firmware-update path. Surge protection alone is not a substitute for this shutdown work or for a verified electrical design.

Decide what happens when power returns. A server that restarts before storage or networking may fail again. Use UPS load groups, PDU controls, system firmware, and orchestration only where the startup order is documented. Avoid automation that repeatedly drains a weak battery during a series of short outages.

Network-card security

UPS management is infrastructure access. Put it on the management network, replace default credentials, limit administrator roles, use encrypted services, update supported firmware, send logs to a monitored destination, and back up the configuration. Disable protocols the team does not use.

VRLA or lithium-ion batteries

Valve-regulated lead-acid batteries remain common and have a familiar replacement market. Lithium-ion models can reduce weight and extend the maker's stated service-life expectation, but they carry a higher purchase price and require their designed battery-management system. Never substitute a battery chemistry or pack that the UPS does not list.

Heat shortens battery service. Review the unit's temperature range, keep airflow clear, and record the installation date. Run scheduled self-tests under the maker's guidance, investigate failed or rapidly changing results, and replace batteries as a matched set when required. Swollen, leaking, unusually hot, or damaged batteries need trained handling.

Bypass and maintenance

An internal automatic bypass can keep a load powered when the inverter cannot carry it, but the load then receives bypass-source power without normal double conversion. An external maintenance bypass can let technicians isolate and replace a UPS while the load remains on utility power. That arrangement needs compatible voltage, transfer, protection, labeling, and operating procedure.

A single UPS remains one service point. Dual-cord equipment can use separate A and B power paths when each path is independently designed to carry the required failure load. Two output cables from the same UPS are not independent.

Who should choose what

Small office or home lab

Choose a quiet line-interactive sine-wave model when the utility supply is stable and the primary need is short-outage ride-through plus shutdown. Avoid a loud online model in occupied space unless its electrical benefits justify the noise and heat.

Branch office or edge rack

Prioritize network management, replaceable batteries, a support path, and enough runtime for remote staff to respond. A metered PDU can help separate UPS capacity from outlet distribution.

Server room with difficult power

Consider online double conversion, maintenance bypass, environmental monitoring, and external battery modules. The cooling and facility plan must include UPS losses and battery weight.

Loads that should avoid a general IT UPS

Life-safety systems, medical devices, large motors, and specialized industrial equipment need approved designs for those applications. Consumer printers and heaters can also exceed a small UPS through high inrush.

Full ownership cost

Include the UPS, branch-circuit work, rack rails, network card, environmental sensor, external batteries, maintenance bypass, rack PDU, replacement battery sets, shipping, disposal, support, and energy loss. Online units continuously dissipate some input power as heat, which also adds cooling cost.

A low purchase price can be misleading when the battery is not user-replaceable, the network card is expensive, or the unit cannot accept a runtime module. Compare the service path over the years the rack is expected to remain in use.

Safety checklist

• Use two people or rated lifting equipment for heavy UPS and battery modules.
• Mount dense equipment low on approved four-post rails.
• Have a qualified electrician confirm input, output, bypass, and protection.
• Follow the maker's battery connection and replacement sequence.
• Keep vents clear and account for heat in the room cooling plan.
• Test shutdown and alerts without risking production data.

Questions readers ask

How large should a rack UPS be?

Large enough to carry measured peak watts and VA with suitable margin and enough runtime at that load. Use the exact model's curve rather than a runtime printed without load context.

Can a UPS power an entire rack?

Yes, when its output, branch circuit, PDU, receptacles, and runtime are designed for the combined load. Many racks use more than one power path for service or redundancy.

Does a 2U UPS fit any 19-inch rack?

No. Rail depth, weight capacity, post count, mounting holes, rear clearance, and lifting access still need checking.

How often should UPS batteries be replaced?

Follow the maker's service guidance and actual health data. Chemistry, temperature, discharge history, charge behavior, age, and model design all affect the interval.

Sources

• Eaton 9PX product and technical resources, checked July 16, 2026.
• Vertiv Liebert GXT5 500–3000VA guide specifications, checked July 16, 2026.
• APC Smart-UPS On-Line rack/tower installation guide, checked July 16, 2026.
