Best PoE Network Switches: Match Ports, Power, and Uplinks

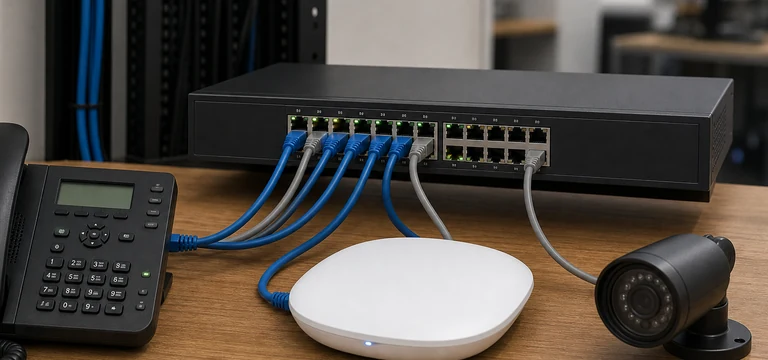

A PoE network switch, also called a Power over Ethernet switch, carries Ethernet data and supplies DC power to compatible devices over twisted-pair cable. It can power Wi-Fi access points, IP cameras, desk phones, intercoms, access-control readers, and small edge switches without a local outlet at every endpoint. The design still needs enough power at each port and across the whole switch.

PoE network switch quick comparison

*Power availability on the Flex 2.5G PoE depends on its power input and cable conditions. Product specifications and US store prices were checked July 16, 2026.

How these PoE network switches were selected

This guide compares published IEEE support, powered-port count, total PoE budget, access speed, uplinks, management, cooling, mounting, and current vendor documentation. The four models represent a compact UniFi switch, a lightly managed mixed-vendor option, a managed switch with SFP uplinks, and a multi-gigabit PoE++ option. They are research-based recommendations, not rankings from a hands-on test bench.

The best PoE switch is the one that satisfies the real endpoint schedule. Record each powered device, its maximum draw, Ethernet speed, cable run, priority, and expected growth. Calculate the PoE switch power budget before comparing prices. A current product page and data sheet should confirm the exact hardware revision, included power supply, warranty, firmware support, and available PoE output before purchase.

PoE types and power budget

The powered device receives less than the maximum switch output because some power is lost in the cable. Product sheets may list power at the power-sourcing equipment, power available to the powered device, or both. Compare figures with the same meaning.

A standards-based switch and device negotiate power before normal delivery. Type 1 and Type 2 use two powered pairs. IEEE 802.3bt can use all four pairs. Older vendor-specific passive PoE may place voltage on a cable without the same negotiation and can damage incompatible equipment. Do not connect passive injectors or ports unless voltage, polarity, pairs, and device support are documented.

Calculate the total power budget

List the maximum published draw for every powered device, not its quiet idle reading. Add the loads, then leave room for startup, cold weather, infrared camera lights, USB accessories, radio transmit load, and later additions. A 62 W switch can run four 10 W devices comfortably; it cannot promise eight 15 W devices at once.

Per-port capability and total budget are separate limits. Eight PoE+ ports may each be able to negotiate up to 30 W, while a 61 W supply prevents all eight from reaching that amount together. Managed models may let critical ports take priority when demand exceeds the total.

For example, four 12 W IP cameras and two 18 W Wi-Fi access points total 84 W at their published maximums. Adding 20 percent planning headroom brings the design target to about 101 W. The switch still needs the correct IEEE type on every port; a 120 W aggregate budget cannot make a 30 W PoE+ port supply a device that requires a higher 802.3bt class. When demand exceeds the usable budget, a switch may deny power to a new device or shed lower-priority ports.

5 port gigabit, 8 port gigabit, 24 port, and 48 port choices

A 5 port gigabit PoE switch can serve a tiny desk, kiosk, or outbuilding, but one uplink may leave only four endpoint ports. An 8 port gigabit or 8 port PoE switch suits a small office, a few IP cameras, or several access points and leaves less expansion room than the label suggests. Count uplinks and spare ports before ordering.

A 24 port switch is a common rack access layer because it can align with a 24 port patch panel and still fit in 1U. A 48 port model increases density but also concentrates Ethernet cable weight, heat, AC demand, and outage impact. Larger deployments should distribute critical devices deliberately, confirm rack depth and airflow, and avoid putting every camera or access point on one unprotected power supply.

Four current PoE switch picks

Managed or unmanaged PoE

An unmanaged PoE switch can detect and power compatible devices with no settings. It fits a small stable system where local lights and physical access are enough. A managed switch adds per-port power draw, priority, schedules, remote disable and enable, VLANs, error counters, and alerts.

Remote power cycling is useful, but it does not repair a bad cable, failing supply, or unstable device. Record the reason for each restart and investigate repeated events. For security cameras and door systems, check whether a schedule or switch restart would interrupt required coverage.

For an IP camera network, put camera traffic in the planned VLAN, restrict management access, and reserve enough budget for infrared illuminators, heaters, wipers, or pan-tilt-zoom motors. A high-draw PTZ IP camera may need 802.3bt even when a fixed camera uses 802.3af. Several Wi-Fi access points can also raise both power and uplink requirements when their radios, USB ports, or downstream PoE features are active.

Deployment profiles and switching architecture

A surveillance network may power fixed and PTZ IP cameras while sending their combined streams to a network video recorder. Check the sustained camera traffic, recorder port, VLAN design, uplink capacity, night-mode power, and the outage effect of one switch. An office PoE network may mix VoIP phones, wireless access points, cameras, and door readers, making per-port priority and separate traffic policies more valuable.

Industrial or outdoor cabinets can require a DIN-rail switch, a wider temperature rating, redundant DC inputs, surge protection, and fiber uplinks. These are design requirements, not upgrades supplied by an ordinary desktop PoE switch. Confirm enclosure, grounding, environmental, and electrical requirements with the project engineer and the exact product documentation.

Switching capacity and PoE capacity are separate. The forwarding system must carry the traffic while the power supply supports the endpoint load. Larger access layers may use SFP+ uplinks, link aggregation, redundant distribution paths, or redundant power supplies. Verify that both ends support the intended LACP and spanning-tree design; connecting extra uplink cables without a planned protocol can create a loop.

Planning and installation

Ethernet cable requirements

Use balanced copper cable and connectors rated for the Ethernet speed, installation space, and PoE load. Higher current makes contact quality and heat more important. Avoid copper-clad aluminum conductors. Keep pair twists close to terminations, support cable bundles, and follow temperature and bundle guidance from the cabling system maker.

A basic continuity tester can catch opens and reversals but does not prove category performance or loaded PoE delivery. New commercial links may need certification records. A device that negotiates power but restarts under load may have a budget, voltage-drop, connector, cable, or device fault.

Cat5e can support many gigabit PoE links when the complete channel meets the applicable design, while Cat6 or Cat6A offers more margin for higher data rates and demanding installations. Cable length, conductor size, connector resistance, temperature, and bundle size affect voltage loss and heat. Use outdoor-rated or shielded cable only where the environment and the complete grounding or surge-protection design call for it.

Plan uplinks

Eight gigabit cameras rarely fill a gigabit uplink at once, while several high-performance access points can. Estimate expected data, not only port labels. A 2.5 Gb/s access point needs a matching switch port, suitable cable, and an uplink that can carry the combined traffic.

SFP and SFP+ slots can provide fiber distance, electrical isolation, or faster aggregation. Check module type, fiber, wavelength, connector, distance, and vendor support. A slot marked SFP does not accept 10-gigabit service merely because an SFP+ module fits physically.

Control heat and outages

A loaded PoE switch converts and distributes substantial power. Leave the required airflow, do not bury a fanless unit under cables, and read the ambient-temperature limit. Rack models with fans may be loud enough to matter in an office.

Size an uninterruptible power supply for the switch's full AC draw, not only its own idle use. Include the router, controller, fiber equipment, and devices that must remain active. Test runtime with a realistic PoE load and decide what should shut down first when battery capacity falls.

PoE switch buying checklist

• Number of powered and unpowered access ports
• 802.3af, 802.3at, or 802.3bt support on each needed port
• Total PoE budget under the chosen power supply
• Maximum device draw and startup behavior
• 1, 2.5, 5, or 10 Gb/s access-port needs
• RJ45, SFP, or SFP+ uplink speed and count
• VLAN, PoE control, logs, alerts, and local management
• Fan noise, rack depth, airflow, and temperature rating
• Controller, cloud account, subscription, and support needs
• UPS load, replacement supply, and configuration backup

Before commissioning the Power over Ethernet switch, survey the site, label both ends of every cable, record the intended VLAN and power assignment for each port, and test every run with instruments appropriate to the project. A PoE-capable tester can help confirm negotiation and available power, while a certification tester may be required to prove the cabling category. Save the switch configuration and a port map, then pilot a representative IP camera or wireless access point before rolling out every endpoint.

Cost and research limits

The four examples span roughly $109 to $199 at posted US prices where a direct store price was available, but the high-power model may need a separate adapter. Larger port counts, 802.3bt output, multi-gigabit access, 10-gigabit uplinks, internal power supplies, and business support raise cost.

This comparison uses published specifications and current product pages. It does not claim measured PoE voltage under load, acoustic output, packet forwarding, thermal behavior, firmware stability, or long-term reliability. Hardware revisions, adapters, firmware, and regional packages can change the result.

Buy from the exact bill of materials. Include the switch, correct power supply, rack or wall kit, transceivers, fiber or copper uplinks, patch cords, UPS capacity, controller, licenses, and spare unit policy. A low switch price can be misleading when the required supply and modules are separate.

Questions readers ask

What is a PoE network switch?

It is an Ethernet switch that supplies data and negotiated DC power to compatible devices over the same balanced copper cable. Standards-based IEEE PoE detects a powered device before normal delivery; passive PoE does not provide the same assurance.

How many devices can a PoE switch power?

The smaller of the powered-port count and the calculated power budget decides. Add each device's maximum draw, check its required IEEE type, reserve headroom, and compare that total with the switch's usable output under the selected power supply.

What is the difference between PoE, PoE+, and PoE++?

The names commonly refer to IEEE 802.3af Type 1, 802.3at Type 2, and 802.3bt Type 3 or Type 4. They support progressively higher power limits. A higher-type standards-based switch can normally negotiate with a lower-type device, subject to vendor compatibility and total budget.

Does PoE reduce network speed?

Power delivery does not set Ethernet speed. Port electronics, cable category and length, endpoint capability, and uplinks determine data rate. A gigabit PoE port remains gigabit even when its power class is higher.

Sources

• Cisco PoE type and power reference, checked July 16, 2026.
• Ethernet Alliance PoE certification program, checked July 16, 2026.
• IEEE 802.3 Ethernet Working Group, checked July 16, 2026.
