A patch panel is a passive termination point for network cable. Permanent horizontal runs land on the rear of the panel, and short patch cords connect the front ports to a switch. The panel does not route traffic, assign addresses, or add Ethernet capacity. Its value is order: fixed cable stays supported and labeled while equipment connections can change at the front of the rack.
Patch panel types
Fixed punch-down panels
A fixed panel has RJ45 jacks on the front and insulation displacement contacts on the rear. Each cable pair is seated into color-coded 110- or LSA-style slots. The ports and metal frame arrive as one assembly, which keeps density high and parts count low.
This format fits a rack with many similar Cat6 or Cat6A runs. Replacing one damaged port can be harder because the jack is part of the panel. Cable access also matters: a full row of rear IDC fields is easier to terminate on a bench or swing-out bracket than inside a crowded shallow cabinet.
Keystone patch panels
An unloaded keystone panel accepts individual snap-in modules. Each cable is terminated to a keystone jack, tested, and inserted into the panel. A failed jack can be replaced without changing the frame. Blank ports can hold covers, fiber couplers, coax modules, or other compatible inserts.
Keystone dimensions are common but not perfectly universal. Wide shielded Cat6A jacks can crowd adjacent openings, and latch depth can vary. Test the exact jack and panel together before buying a large quantity. A vendor-matched modular system reduces fit uncertainty.
A keystone patch module also needs to stay retained when a front patch cable is inserted or removed. Check whether a center module can be released after adjacent positions are filled, whether the rear cable clears the rack door, and whether blanks are available for unused openings. Modular flexibility is valuable only when the selected keystone patch components fit as a system.
Feed-through panels
A feed-through panel has female RJ45 couplers on both sides. It avoids punch-down work and can organize pre-terminated cords. The rear still needs strain support, and each coupler plus two plugs adds connection points. Permanent building cable is usually better terminated on rated IDC hardware rather than hidden male plugs.
Feed-through makes sense for a lab, temporary rack, small media cabinet, or equipment that arrives with factory cords. Check category rating, shield continuity, depth, rear bend clearance, and whether the finished channel remains inside the design limit.
Flat and angled panels
A flat panel faces forward and often works with horizontal cable managers. An angled panel directs patch cords toward vertical managers at the rack sides. Angled panels can reduce the need for a horizontal manager but need side space and a rack layout that supports the cable path.
Category, shielding, and port count
Match category across the channel
A channel is only as strong as its installed cable, connectors, patch cords, workmanship, and length. A Cat6A label on the patch panel does not turn Cat5e cable into a Cat6A link. Use connecting hardware rated for the intended category and follow the maker's supported conductor size and cable construction.
| Panel choice | Typical use | Check closely |
|---|---|---|
| Cat5e | Existing gigabit plant and repairs | Project speed and reuse policy |
| Cat6 | New home and office gigabit cabling | 10GbE distance requirement |
| Cat6A | 10GbE horizontal links and higher-power edge | Depth, cable diameter, grounding |
Cat6 is a practical choice for many short home and office links. Cat6A provides a clearer standards path for 10-gigabit copper to 100 meters but uses thicker cable and larger hardware. Confirm pathway fill, bend radius, jack depth, and bundle management before making the category decision.
Shielded or unshielded
An unshielded panel belongs with unshielded cable and jacks. A shielded panel provides a metal path for shielded connectors and usually includes bonding hardware. Shielding works as a designed system. A metal panel alone does not cure interference, and an incomplete bond can create confusing results.
Follow the cabling maker's bonding instructions and local electrical rules. Keep communications bonding separate from improvised rack screws or random wire paths. The metal frame may need bonding even when the ports themselves are unshielded, depending on the product and site rules.
How many ports?
Count installed runs, planned access points and cameras, spare room cables, and near-term additions. Common rack layouts use 24 ports in 1U or 48 ports in 1U or 2U. Higher density saves rack space but makes labels, fingers, and patch-cord routing tighter.
A 12-port wall bracket or structured-media module may fit a home better than a full-depth rack panel. Leave spare openings for growth, but cover unused keystone holes to reduce dust and make live ports easier to read.
A patch panel 24 port layout balances density and service access for many small network racks. A 48-port panel can work in a larger installation when rear cable management, labeling, and patch cable routing are designed for the higher density rather than added later. Port count should follow the cable schedule and growth plan instead of mechanically filling every available rack unit.
Rack units, wall mount options, and access
One rack unit is 1.75 inches high. Many 12- or 24-port copper panels use 1U, while higher-density and angled designs vary. Verify rail spacing, fastener type, panel depth, rear clearance, and whether the installation needs front-only service. A hinged wall mount bracket can improve rear access, but its load rating and swing clearance must include the terminated cable bundle.
Rack layout and cable support

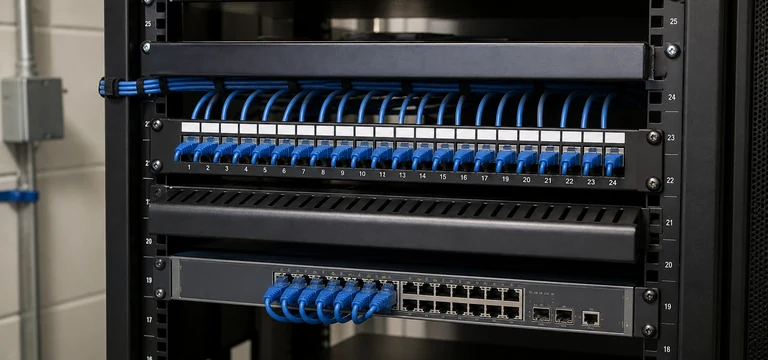

Place the patch panel close enough to the switch that cords follow a clear path without stretching across service areas. One common layout alternates a patch panel and switch, using short cords. Another groups panels above and below vertical managers with switches in a separate block. Both can work when labels remain visible and cables do not block airflow.
Permanent cable is heavier and stiffer than a patch cord. Use the panel's rear support bar, cable tray, hook-and-loop straps, or lacing points. The IDC contacts should not carry bundle weight. Keep service slack in a supported loop that respects cable bend radius and leaves room to remove the panel.
Avoid tight nylon ties that deform cable, sharp metal edges, and large unsupported bundles hanging behind the rack. Separate data cabling from power according to the cabling system instructions and local rules. Keep rack doors, fans, and power-supply handles serviceable.
Route each patch cable through the horizontal or vertical manager that serves its destination instead of stretching diagonally across equipment. Use lengths that reach without tension but do not create large coils in front of the switch. Keep fiber and copper supported according to their different bend limits, and document any project-specific separation required for power or electromagnetic-interference control.
Patch panel termination steps
- Confirm the design. Check panel category, shield type, conductor range, rack position, cable labels, and T568A or T568B scheme.
- Mount for safe access. A removable or swing-out position may make rear termination cleaner. Follow the product's rack and bonding directions.
- Route by port. Bring each labeled cable to its termination field with supported slack and a gentle bend.
- Remove limited jacket. Strip only the length needed for the maker's routing pattern. Do not nick conductor insulation.
- Place the pairs. Follow the printed A or B color code. Keep pair twists close to the IDC slots and keep pairs near equal length.
- Seat and trim. Hold the correct 110 or LSA blade perpendicular, put the cutting edge toward the waste end, and use the impact setting named by the maker.
- Inspect every port. Look for crossed colors, loose conductors, bridged wires, excess untwist, and jacket that ends too far from the field.
- Support the bundle. Attach cable to the rear bar without crushing it, then bond the panel when required.
- Label and test. Test the fixed link before adding switch and equipment cords.
Leviton's Cat6 flat-panel instructions call for a low-impact 110 tool held perpendicular to the IDC, with pair twist maintained to within 0.5 inch of the contact. Use the measurements and preparation steps supplied with the selected panel; another design may route and trim pairs differently.
T568A or T568B
Both schemes place the same four pairs on the eight contacts in different orange and green positions. Use the site's existing scheme at the panel and outlet. A link with A at one end and B at the other becomes a crossover pinout, even if each end looks tidy.
Read the panel's port numbers carefully. Rear IDC groups may not appear in the same left-to-right order as the front jacks. Keep the wiring card installed and do one port at a time.
Labeling, testing, and records
A useful label ties the rack port to the room, outlet, and drawing. Use machine-printed labels sized for the panel window. Avoid labels such as “office” when rooms or desks may change. A code such as TR1-PP1-17 and a matching outlet identifier survives a move better.
A basic wire-map tester can find opens, shorts, reversals, and some split pairs. It cannot prove Cat6 or Cat6A performance. New commercial work may require permanent-link certification with calibrated adapters and saved results. The permanent-link model normally tests the fixed cabling from patch panel to work-area outlet and excludes user patch cords.
Store the port map, cable identifier, test result, standard and limit, date, technician, and tester information. Update records when a port is repaired or reassigned. Patch-cord changes belong in network or rack records rather than changing the permanent cable identifier.
Certification reports should identify the selected test limit, such as a permanent-link limit for the category being claimed, and show pass or fail for the measured parameters. Wire map, length, insertion loss, return loss, and crosstalk results serve different purposes. Retain the original electronic report rather than only a photograph of a pass screen, and follow the project specification when TIA or ISO/IEC compliance is required.
Patch panel installation and handover checklist
- Confirm the Ethernet patch panel category, shielding, conductor range, port count, and rack or wall fit.
- Verify the selected patch cable, permanent cable, jack, and termination tool belong in the intended channel.
- Install the cable management bar or rear tray before the bundle places weight on the contacts.
- Record T568A or T568B, panel and outlet identifiers, test limit, and every repaired port.
- Check grounding and bonding against the panel maker's instructions and the project design.
- Deliver the port map, test files, warranty records, and compatible replacement-part list.
Common patch panel faults
Open conductor
A wire may be in the wrong slot, not fully seated, cut by the blade, or damaged in the run. Reseat only when the connector maker permits it, then retest.
Split pair
Pin continuity can look correct while conductors come from the wrong twisted pairs. Follow the full T568 color map and use a tester that detects split pairs.
Poor high-frequency result
Excess untwist, long exposed conductors, tight bends, damaged cable, mixed category parts, or a poor connector can reduce headroom. A certification tester can help locate whether the fault is near a termination or along the run.
Intermittent port
Check IDC seating, jack contacts, patch cord, cable support, and switch counters. If movement changes the fault, remove strain from the termination before replacing parts.
Cost, fit, and research limits
Unloaded 12- or 24-port keystone frames can be inexpensive, but the individual jacks create most of the finished price. Fixed Cat6 panels bundle the ports into one purchase. Cat6A, shielded hardware, angled frames, high-density formats, rear managers, and brand-backed system warranties cost more.
Budget for the panel, jacks when separate, rack or wall bracket, rear support, horizontal or vertical managers, cage nuts, labels, patch cords, punch-down or termination tool, tester, grounding parts, and labor. A cheap panel that slows every termination or will not hold the selected jack is not a saving.
This article uses published installation and testing documents. It does not compare measured insertion loss, crosstalk margin, connector durability, or installation time. Results depend on the exact panel, cable, jack, tool, installer, rack, and test limit.
| Need | Better fit | Avoid |
|---|---|---|
| Uniform 24-port office rack | Fixed Cat6 or Cat6A panel | Mixed unverified parts |
| Home rack with varied media | Unloaded keystone panel | Overfilled shallow box |
| Temporary pre-terminated cords | Feed-through panel | Unsupported rear plugs |
| Shielded Cat6A project | Matched bonded system | Isolated shielded components |
Questions readers ask
Does a patch panel need power?
A passive copper patch panel does not. Active electronics such as a switch, media converter, or monitored intelligent panel may require power.
Can a patch panel slow the network?
A correctly rated and terminated panel is part of the channel design. A damaged connector, poor termination, wrong category, excess connections, or bad patch cord can reduce performance.
Should a switch connect directly to wall cables?
Permanent solid cable is usually terminated on a patch panel and outlet, then connected with flexible patch cords. Direct termination may be supported for specific modular-plug terminated links, but it needs matching hardware and a defined test plan.
Can Cat6 cable terminate on a Cat5e panel?
It may fit, but the link cannot claim Cat6 performance from the cable alone. Use components rated for the required channel category.
