Keystone jacks are snap-in modules used in wall plates, surface boxes, patch panels, and furniture outlets. An Ethernet keystone jack puts an eight-contact modular socket on the front and an insulation displacement or tool-less termination on the rear. These Ethernet keystone jacks make one damaged outlet replaceable without discarding the plate or panel.
Keystone jack types and comparison
Punch down keystone jack
A punch-down jack uses individual IDC slots for the four twisted pairs. A 110 tool seats and trims each conductor. This familiar design is compact and inexpensive, and a skilled installer can inspect every wire before closing the outlet.
The blade and impact setting must match the jack. Holding the cutting edge toward the live wire can sever the connection. A high impact setting can damage a small jack, while a worn blade may leave copper folded instead of cut cleanly.
A punch down keystone jack is usually intended for permanent solid-conductor Ethernet cable, but the supported conductor construction and AWG range come from its data sheet. The IDC displaces insulation and grips the conductor without first stripping each wire. Preserve the pair twists and follow the jack's routing because contact position and internal compensation differ by design.
Tool less keystone jack

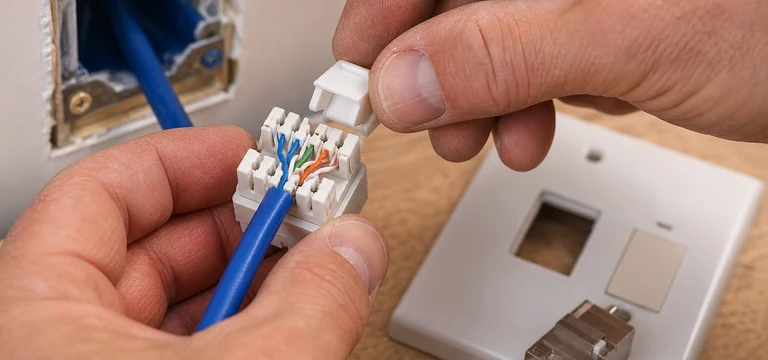

A tool-less jack routes conductors through a cap, manager, or hinged body and seats them when the assembly closes. “Tool-less” may still require a flush cutter and a maker-specific press. The design can reduce variation when the cable and preparation steps match the product.
Check reuse instructions before opening a terminated jack. IDC contacts and wire managers may allow a limited number of reterminations. Repeated opening can weaken latches or move the contact point along a conductor.
Do not assume a tool less keystone jack is for stranded patch cable. Many tool-less Cat6 and Cat6A modules are specified for solid horizontal conductors, while some products accept a limited stranded range. Match conductor construction, copper size, insulation diameter, jacket diameter, and strain-relief method to the exact module.
Shielded jacks
A shielded keystone has a conductive shell and a method to connect foil, braid, or drain wire. The installed jack needs a continuous shield path through compatible panel or plate hardware and the site's bonding design. Cable preparation differs by shield construction.
Shielded Cat6A modules can be wider and deeper than unshielded Cat6 parts. Two may not fit side by side in every high-density panel. Confirm spacing, rear depth, door closure, and cable bend radius with physical samples.
Coupler and media modules
An RJ45 feed-through coupler has female sockets on both sides. It can join factory patch cords or provide a front-facing port for pre-terminated cable. It adds two plug interfaces and needs rear strain support. Do not assume a coupler has the same channel rating as an IDC jack.
The same keystone opening can hold HDMI, coax, fiber, USB, blank covers, and audio modules. Mechanical fit does not prove electrical or category performance. Mixed-media plates also need enough depth and safe separation from line-voltage wiring.
Telecom, audio-video, and orientation choices
Keystone modules are also sold for telephone RJ11 or RJ12, coaxial cable, HDMI, USB, fiber, RCA audio, and speaker connections. Choose the module for the actual signal and cable; a shared rectangular opening does not make these interfaces electrically interchangeable. Mixed network, telecom, and audio-video plates should be labeled clearly and installed with the separation the building design requires.
Rear cable orientation can be described as 90 degree or 180 degree, although product naming varies. One design sends the cable sideways or downward, while another sends it straight back. Neither orientation is automatically better. Select the one that preserves bend radius and service access in the actual wall box, surface box, furniture opening, or patch panel.
Housing material, shield construction, contact plating, latch retention, environmental rating, and third-party listings can differ. Treat a published specification as the evidence. A metal shell or a gold-color contact does not by itself prove category performance, PoE suitability, corrosion resistance, or compliance.
RJ45 keystone jack front interface
An RJ45 keystone jack presents an eight-position modular socket at the front. Inspect contact plating specifications, latch retention, insertion-cycle rating when published, and whether a dust shutter affects access. The familiar socket does not make every rear termination or category rating equivalent. Use patch cords whose plug and category are suitable for the channel.
Seven compatibility checks
- Category. Match Cat5e, Cat6, or Cat6A hardware to the intended channel rating.
- Conductor construction. Permanent jacks are commonly made for solid conductors. Use stranded cable only when the data sheet permits it.
- Wire gauge. Confirm the supported American Wire Gauge range and insulation diameter.
- Cable construction. Check spline, pair separator, foil, braid, drain wire, and full jacket diameter.
- Termination method. Use the stated 110 blade, press, lacing fixture, wire manager, and flush cutter.
- Mounting fit. Test latch position, width, depth, and removal access in the actual plate or panel.
- Environment. Match indoor, plenum, industrial, outdoor, moisture, temperature, and chemical requirements.
Leviton's Atlas-X1 instructions tell the installer to match the Cat6 or Cat6A jack rating to the cable. The wire manager is trimmed flush before it is joined to the jack. That sequence is specific to the product; a different jack may use exposed IDC slots or a hinged cap.
Cat5e, Cat6, or Cat6A
| Jack class | Common reason to choose it | Installation concern |
|---|---|---|
| Cat5e | Repair an existing gigabit-rated plant | Do not claim a higher channel category |
| Cat6 | New home or office copper cabling | Keep pair geometry at the termination |
| Cat6A | 10GbE to 100 m and demanding edge links | Larger cable, jack depth, alien crosstalk |
Category parts are backward compatible at the application level only when the complete link supports the slower service. The lowest-rated component and the installed workmanship affect the channel. A Cat6A jack on Cat6 cable does not create a Cat6A result.
Punch-down and tool-less choices by category
A Cat5e punch down keystone is useful when repairing or extending a Cat5e permanent link and gigabit service meets the design. A Cat6 punch down keystone is a common choice for new home and office runs; pair routing and near-end crosstalk margin make short, consistent untwist important. A Cat6A punch down keystone must support the larger cable and the alien-crosstalk controls required by the complete Cat6A system.
A Cat5e tool-less keystone jack can simplify low-volume work when its data sheet supports the selected cable. A Cat6 tool-less keystone jack usually adds a wire manager or closing cap that controls pair placement and strain relief. A Cat6A tool-less keystone jack often has the largest body and strictest cable-fit limits, so verify panel density, wall-box depth, conductor gauge, shield preparation, and the maker's compatibility list before purchasing project quantities.
For a component-rated replacement, a Cat5e keystone jack should be matched to an existing Cat5e link rather than used to make a higher claim. A Cat6 keystone jack needs suitable Cat6 cable and workmanship to preserve near-end crosstalk margin. A Cat6A keystone jack belongs in a complete Cat6A channel when 10GBASE-T distance and alien-crosstalk control are design requirements. Category names describe performance classes, not universal mechanical fit.
Keystone fit is not fully universal
The front opening and latch pattern are widely shared, but module shoulders, body width, depth, clip tension, and removal tabs vary. A jack may snap into a wall plate yet block the neighboring opening. It may fit an unloaded panel but sit too deep for the cabinet.
Buy one plate or panel and a few jacks first. Insert all adjacent positions, attach realistic cable, close the box, and remove a center jack. This catches clearance problems before the cable is pulled.
For a single outlet, confirm the module fits the selected single gang wall plate and leaves enough box depth for the cable bend. For a rack, populate several neighboring positions in the actual patch panel. A latch that works in an empty plate may be difficult to release after adjacent keystone jacks and cables are installed.
How to terminate a keystone jack
- De-energize the cable. Disconnect it from switches, injectors, phones, and other sources before termination.
- Read the product sheet. Confirm cable range, strip length, tool, T568 scheme, shield preparation, and retermination limits.
- Label both ends. Tie the outlet to the patch-panel port before covers hide the run.
- Strip the jacket. Remove only the required length and inspect every conductor for nicks.
- Place pairs by the printed map. Use T568A or T568B consistently across the site.
- Preserve pair geometry. Keep twists close to the contact and avoid flattening or crossing pairs more than the jack's routing requires.
- Seat and trim. Use the named punch tool, press, or closing cap. Cut waste flush without cutting the live side.
- Close shields and caps. Follow the maker's foil, drain, clamp, and bonding sequence for shielded hardware.
- Inspect and test. Check color order, jacket position, exposed copper, latch closure, wire map, and the required performance tier.
- Mount without strain. Leave supported service slack and respect the cable bend radius behind the plate.
T568A and T568B
The two schemes swap the orange and green pair positions. Either can make a straight-through link when both ends use the same scheme. Follow the building standard and the color map printed on the specific jack. Do not copy the physical position from another brand because the internal routing can differ.
Some caps show A and B on opposite rows. Confirm the chosen letter at every pair. A photograph of a finished sample and a printed site standard can reduce errors during a large run.
Wall-box depth and bend radius
Cat6A cable can be thick and stiff. Siemon's Z-MAX planning material calls out outlet-depth requirements and a minimum bend radius of four times the cable diameter under no load unless the product specification says otherwise. A shallow box can force a tight bend directly behind the jack.
Use a deep box, low-voltage bracket with cavity space, angled faceplate, or surface box where needed. Keep service slack outside the sharpest part of the bend and away from screws or cover edges.
PoE and contact care
Power over Ethernet places current through the jack contacts and cable pairs. Use jacks and complete channels the maker supports for the intended IEEE PoE type. Poor contact, small conductors, cable damage, heat, and repeated disconnect under load can raise resistance or damage a contact surface.
Turn off PoE on a managed port before repeated patching when the work process allows it. Never terminate live cabling. For higher-power bundles, follow cable temperature, fill, and bundle guidance. A cool idle camera does not represent its draw when heaters, motors, radios, or infrared lights turn on.
Testing and common faults
Wire map
Start with opens, shorts, reversals, crossed conductors, and split pairs. A simple continuity result can miss a split pair, so use a tester that reports pair relationships. Check both the jack and its patch-panel mate.
Permanent-link performance
Commercial handoff may require certification against the chosen category. Certification measures signal traits across the fixed link and records margin. A network link light or internet speed test cannot replace that evidence.
Open or intermittent contact
Look for a wire sitting above the IDC, insulation that was not displaced, a cut live end, damaged jack contacts, or strain from a tight cable. Reseat or replace according to the maker's retermination instructions.
Near-end crosstalk failure
Excess untwist, a poor pair route, mixed conductors, cable damage, or an incompatible jack can reduce margin near the termination. Reterminate with the printed route and a known compatible part rather than changing several variables at once.
Shield test failure
Inspect foil preparation, drain wire, clamp closure, shielded patch cords, panel bond, and test adapters. A continuity indication alone may not prove the full shield path behaves as intended.
Document certification results
For each port, retain the outlet and patch-panel identifiers, wiring scheme, cable and jack models, test limit, instrument and adapter type, date, and result. A category certification report can include wire map, length, insertion loss, return loss, near-end crosstalk, and other measurements appropriate to the test model. Retest after any retermination or repair and replace damaged modules rather than repeatedly forcing an uncertain contact.
Project planning and procurement
Map every patch panel port to its wall plate before cable is pulled. Record route constraints, intended PoE load, environment, fire-rating requirement, and any shielding or bonding plan. Buy the punch-down tool, press, cable stripper, flush cutter, tester, labels, blanks, and removal tool required by the selected system. Keep a small quantity of identical spare keystone jacks for repairs.
Validate manufacturer data sheets before ordering. The useful checklist is category, shield construction, solid or stranded conductor support, AWG and insulation range, cable diameter, termination method, panel and single gang wall plate fit, PoE statement, environmental rating, and available installation instructions. A sample termination and documented test are safer than assuming parts marked Cat6 or Cat6A will work together.
For a typical project, procure the Ethernet cable, compatible keystone jacks, keystone patch panel or single gang wall plates, patch cords, blanks, labels, and the exact punch-down or closing tool as one bill of materials. A matched bill reduces surprises around latch geometry, conductor size, drain-wire handling, and test eligibility while still allowing a damaged module to be replaced individually.
When keystone jacks fit and when they do not
| Situation | Good choice | Avoid |
|---|---|---|
| Home wall outlets | Cat6 UTP punch-down modules | Male plugs hidden in walls |
| Mixed-media small rack | Unloaded keystone panel | Unverified wide modules |
| 10GbE office build | Matched Cat6A channel | Category mixing |
| Electrically noisy designed plant | Bonded shielded system | One isolated shielded jack |
| Temporary factory cords | Rated feed-through coupler | Unsupported rear connections |
A fixed patch panel may be faster and denser when dozens of identical rack ports are needed. A field-termination plug may suit a documented modular-plug terminated link to a ceiling access point or camera. Choose the topology before choosing the connector.
Cost and research limits
Basic unshielded Cat6 jacks often cost a few dollars each in project packs. Tool-less, Cat6A, shielded, color-coded, industrial, and vendor-certified system parts cost more. Small packs can cost much more per port than bulk boxes.
Include the plate or panel, blank inserts, box, cable, patch cords, termination tool or press, flush cutter, labels, tester, and labor. A cheap jack that needs rework can cost more than a matched part. Buying a small sample protects against panel-fit and cable-range mistakes.
This article reviews published specifications and installation documents. It does not claim measured crosstalk margin, insertion loss, heat rise, pull strength, or termination speed. Those results depend on the exact jack, cable, tool, plate, installer, environment, and test method.
Questions readers ask
What is a keystone jack?
It is a small modular connector that snaps into a compatible wall plate, surface box, furniture opening, or patch panel. The front opening is common, but body width, depth, latch geometry, signal type, and removal clearance vary.
Can stranded patch cable terminate on a keystone jack?
Only when the jack's conductor specification allows stranded wire. Most permanent cabling jacks are designed around solid horizontal cable.
Can I reuse a keystone jack?
Some designs permit a limited number of reterminations with specified preparation. Follow the maker's instructions and replace any damaged contact, cap, latch, or shield clamp.
How do I choose the correct keystone jack?
Match the application, category, shield type, solid or stranded conductor support, AWG and insulation range, cable diameter, termination tool, PoE requirement, panel or wall-plate fit, depth, and environment. The manufacturer's data sheet decides compatibility.
What is the difference between a keystone jack and a coupler?
An IDC keystone jack terminates installed cable at the rear and accepts a patch cord at the front. A feed-through coupler joins two terminated cords through front and rear sockets. Both can fit a keystone opening, but their connection count, strain support, and channel role differ.
Do I need a keystone jack for a wall outlet?
A modular low-voltage wall plate normally needs a jack or coupler for each intended signal. Ethernet permanent cable is commonly terminated on an IDC keystone jack. Factory cords can use a rated coupler in a design that supports the extra connection.
