SFP Module Selection Guide for Servers and Network Operators

An SFP module is a small, replaceable transceiver that gives a switch, router, server card, or media converter a defined network interface. Depending on the model, it may drive multimode fiber, single-mode fiber, twisted-pair copper, or a direct-attach cable. The port cage supplies the physical slot. The host hardware and software decide which module types and speeds are accepted.

An optical transceiver converts the host's electrical data into light for fiber optic cables and converts received light back into an electrical signal. Copper SFP modules perform a related media conversion for twisted-pair cabling. In both cases, the SFP port, module electronics, network standard, and cable must operate as one compatible channel.

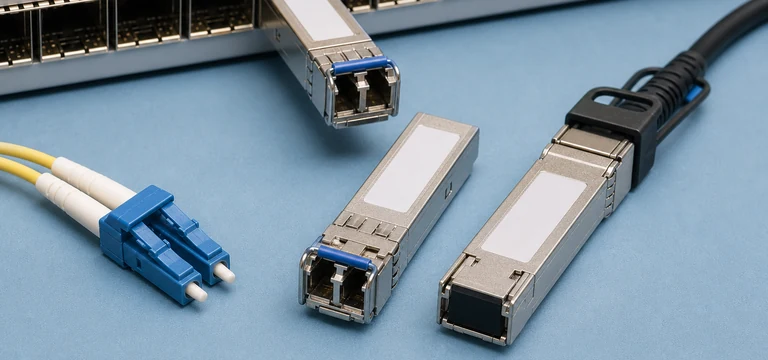

Overview of Small Form Factor Pluggable (SFP) modules

The “small form-factor pluggable” family is broader than one speed. SFP commonly describes 1 Gigabit modules, SFP+ commonly carries 10 Gigabit signals, and SFP28 commonly carries 25 Gigabit signals. SFP56 commonly uses PAM4 signaling for a 50 Gb/s lane, while SFP-DD adds a second electrical lane for supported higher-density designs. Similar dimensions make upgrades convenient, but they do not create universal backward compatibility.

What the comparison can establish

This article uses published module standards, vendor data sheets, and host compatibility tools. It does not report measured optical power, bit-error rates, temperature, or long-term failure rates. Third-party coding policies and firmware behavior can change by platform release, so the device maker's current matrix remains the purchase authority.

A standards-compliant optical signal may interoperate across brands when both ends implement the same standard. The host can still reject a module because of identification data, power class, firmware, or a support policy. Optical interoperability and host acceptance are separate checks.

Fiber optic transceivers: wavelength, reach, and fiber type

1. Record the host device, line card or NIC, port number, and software version.
2. Find the port's supported speeds and approved transceiver list.
3. Choose the network standard, such as 1000BASE-SX, 10GBASE-SR, or 10GBASE-LR.
4. Match the installed fiber type, connector, and polish.
5. Check reach, loss budget, receiver overload, temperature, and module power class.
6. Repeat the checks for the far-end host and optic.

SR, LR, ER, and other reach labels

Reach suffixes are tied to a specific speed and standard. At 10GbE, SR is a short-reach multimode interface and LR is a 1310 nm single-mode interface. Cisco's current 10G SFP+ sheet lists SR, LR, ER, ZR, BiDi, DAC, and copper options, each with its own fiber, connector, optical power, and distance limits. Do not carry the distance from a 10G label into a 1G or 25G purchase.

Maximum reach assumes a channel within the stated loss and dispersion limits. Patch panels, splices, dirty ferrules, tight bends, and mixed fiber grades consume margin. Some high-power optics also publish a minimum attenuation or receiver overload limit for short links.

Multimode or single mode

An SR module normally uses an 850 nm source and multimode fiber. An LR module normally uses 1310 nm single-mode fiber. The LC connector can be identical on both, which makes visual mistakes easy. Read the module label and cable legend before inserting a patch cord.

Mode-conditioning patch cords belong to defined legacy combinations such as certain 1000BASE-LX links over multimode cable. They are not general adapters between single-mode and multimode optics.

Gigabit Ethernet module choices

For Gigabit Ethernet, 1000BASE-SX is a common multimode choice and 1000BASE-LX is a common longer-reach optical choice, subject to the host and channel specifications. A copper 1000BASE-T SFP can provide an RJ45 interface when the host explicitly supports its power and electrical requirements. For 10G and 25G links, move to a supported SFP+ or SFP28 transceiver rather than assuming a 1G SFP module can change speed.

Duplex, BiDi, CWDM, and DWDM

Duplex optics use separate transmit and receive strands. BiDi optics use two wavelengths over one strand and must be purchased as complementary upstream/downstream models. CWDM and DWDM modules use assigned wavelength channels and need a matching passive or active optical system. Two modules with the same line rate can still be incompatible when their wavelengths or channel plans differ.

DAC, AOC, and RJ45 modules

A passive direct-attach copper cable is often the lowest-part-count link between nearby SFP+ ports. The transceiver ends are fixed to the cable, so check cable length and both host compatibility lists. An active optical cable gives a light, flexible optical path but also has fixed ends and cannot use an installed patch panel.

An RJ45 SFP+ can connect a fiber-oriented SFP+ cage to 10GBASE-T. It draws more power and creates more heat than many optical modules, and supported reach may be shorter than a native 10GBASE-T port. Cisco's SFP-10G-T-X, for example, is specified for Category 6A links up to 30 meters, not the 100-meter reach associated with a normal native 10GBASE-T channel. Check whether adjacent cages and chassis airflow can support the module.

SFP vs SFP+ compatibility and coding

An SFP contains identification memory with vendor, part, capability, wavelength, and calibration data. The host reads that information when the module is inserted. Some platforms accept standards-based third-party modules, some display a warning, and some disable the port. A command that permits unsupported optics can also change the vendor's support boundary.

Use the switch or NIC maker's compatibility matrix for the exact hardware and software release. A family-level statement such as “supports SFP+” is not enough. Combo ports, breakout adapters, multi-rate ports, and older line cards can have narrower rules.

SFP compatibility has two layers. The host must accept the local SFP module, and the two line-side interfaces must exchange the same signal. That means a supported fiber transceiver can still fail across the link when speed, wavelength, fiber grade, connector polish, or BiDi direction differs.

Speed fallback is not automatic

A 10G SFP+ cage may support only 10G, or it may accept selected 1G SFP modules. An SFP28 cage may support 25G only, 10/25G, or several rates. The optic must support the chosen rate too. Auto-negotiation behavior is different across optical Ethernet standards, DAC assemblies, and copper SFP modules.

In short, SFP vs SFP+ is more than a speed switch in the module. The SFP port electrical interface, firmware, and network standard must explicitly support the selected rate and optical transceiver.

Temperature and module power

Commercial, extended, and industrial temperature modules have different published ranges. The host chassis must support the module's power class and remove its heat. Dense rows of copper SFP+ modules can exceed port or chassis thermal guidance even when each module links by itself.

Connector polish and polarity

Most duplex LC Ethernet optics use UPC-polished connectors. APC connectors are common in PON and some optical transport systems. Do not mate APC to UPC. On a duplex link, transmit must cross to receive. Structured cabling should use a documented polarity method from panel to panel.

SFP module selection checklist

• Match the SFP port speed, electrical interface, firmware release, and vendor support policy.
• Choose the exact Ethernet or Fibre Channel standard before comparing SFP transceivers.
• Verify wavelength, single-mode or multimode fiber grade, connector type, polish, reach, and optical budget.
• For a BiDi SFP, buy the complementary transmit and receive wavelength pair.
• For an SFP copper module, check power, heat, supported reach, and auto-negotiation behavior in that host.
• Confirm DOM/DDM support, operating temperature, warranty, and a tested spare for critical ports.

This sequence works for a 1G SFP transceiver, a 10G SFP+ module, and newer SFP28-family links because it starts with host and signal compatibility rather than the shared physical outline.

Common server and network-switch scenarios

In a data center rack, a passive DAC is often the simplest short server-to-switch connection when both SFP+ ports approve the assembly. Across a room, an AOC can reduce cable weight without requiring separate optical modules. A building backbone usually calls for matched fiber optic transceivers and installed fiber, while a single available strand may favor a complementary BiDi SFP pair. A legacy Gigabit Ethernet device may use a 1000BASE-T copper SFP or a 1G optical module, but only when its SFP port supports that interface.

These examples are selection patterns, not universal reach claims. Read the optical module data sheet, switch or NIC compatibility matrix, and fiber channel records for the actual link.

Digital optical monitoring, DDM, and fault finding

SFF-8472 defines a management interface for SFP-class modules. When digital diagnostic monitoring is implemented, the module can report temperature, supply voltage, laser bias current, transmit power, receive power, and alarm thresholds. Device commands may call the feature DOM, DDM, or optical monitoring.

Diagnostics are valuable, but they are not a calibrated cable certification by themselves. Readings depend on the module's calibration and on how the host exposes the data. Treat warning and alarm thresholds as module-specific values.

The module's EEPROM identification can expose the vendor name, part code, serial number, supported interfaces, wavelength, and calibration data to a compatible host. Record those values at deployment. A later inventory comparison can reveal an unexpected replacement or coding mismatch, while trend data from SNMP or platform telemetry can show a receive-power change before a link fails.

A practical fault order

1. Read the host log and module inventory. Confirm the expected part and supported speed.
2. Check administrative state, port configuration, and link partner settings.
3. Inspect and clean both connector ends using fiber-safe tools.
4. Verify duplex polarity or the complementary BiDi module pair.
5. Compare transmit and receive readings with each module's stated limits.
6. Test the patch cord or installed channel with suitable optical equipment.
7. Swap one known-good supported part at a time and record the result.

A receive reading near zero or far under sensitivity may mean an open path, wrong wavelength, reversed strands, dirty connector, or failed transmitter. A high receive level can overload the module. A temperature alarm can point to blocked airflow, unsupported module density, or a failing device.

Safe handling

Treat every fiber port as potentially active. Do not stare into a module or cable. Disable the port when the platform procedure calls for it, release the latch without twisting the cage, and store the module in an antistatic package with a clean dust plug. Clean the cable end before reconnecting it.

When a pluggable module is the right choice

Use an SFP-family link when approved pluggable ports need different reach, fiber, or wavelength options, replaceable optics, or digital optical monitoring. Use a native RJ45 port or approved DAC/AOC when it serves a fixed short link with fewer parts. Ordinary optical SFP links do not carry PoE.

Cost and spares

Price the link, not one module. A duplex fiber link normally needs two optics, a tested cable channel, patch cords, cleaning supplies, and sometimes patch-panel cassettes. A BiDi link needs a matched module pair. CWDM or DWDM adds passive multiplexers and wavelength-specific spares.

Stock spares by function and coding: speed, standard, wavelength, connector, reach, temperature, and host family. One generic “10G spare” cannot replace an SR, LR, BiDi, and copper module. Record serial numbers and firmware where the module supports it.

Procurement, warranty, and lifecycle checks

Ask for the manufacturer data sheet, coding policy, warranty term, return procedure, and current host-compatibility statement before ordering a large batch of SFP modules. Mean-time-between-failure figures are not a substitute for a stocked spare and a replacement process. For critical uplinks, qualify a sample in the intended hardware and software release, record DOM/DDM baselines, and keep the exact approved part code in the configuration record.

For third-party SFP transceivers, confirm who diagnoses a disputed link and whether firmware changes affect coding or replacement support.

Questions readers ask

Can an SFP+ module work in an SFP port?

Usually no. The module may fit physically, but an SFP port is not expected to supply a 10G SFP+ electrical interface. Use only combinations listed by the host maker.

Can a 1G SFP work in a 10G SFP+ port?

Sometimes. Many multi-rate ports support selected 1G modules, while others are 10G-only. Check the port and optic matrix.

Do both ends need the same brand?

Not always. The optical standards can permit cross-brand links, but each host must accept its local module and both optics must implement compatible signals. Same-brand modules do not fix a speed or wavelength mismatch.

What does DOM show?

Supported modules can report temperature, voltage, laser bias, transmit power, receive power, and thresholds. The host command and available fields vary.

Can SFP modules be hot-swapped?

The form is designed for pluggable service, but follow the host's installation procedure and network change controls. Protect eyes, connectors, and traffic during the swap.

Sources

• SNIA SFF-8472 management interface for SFP+ modules, checked July 16, 2026.
• Cisco 10GBASE SFP+ module data sheet, checked July 16, 2026.
• Cisco transceiver support and compatibility tools, checked July 16, 2026.
