ECC RAM stores extra check information so the memory controller can detect and correct supported bit errors. ECC stands for error correcting code, a class of error-checking methods used to reduce the chance that a correctable memory error reaches software as bad data. That protection is valuable in servers that run for long periods, hold databases or virtual machines, perform scientific work, or keep irreplaceable data in memory. Buying a module with “ECC” in its listing is not enough. The full platform has to support its exact memory class.
How ECC memory and error correcting code work
Soft and hard memory errors
Memory errors are often described as soft or hard. A soft error is a transient change that does not by itself prove the memory chip is permanently damaged; a hard error repeats because of a persistent electrical, thermal, interconnect, or component fault. Logs and repeat testing help distinguish the pattern, but the cause cannot be identified from one counter alone.
Error checking and single-bit error correction
Many server platforms use a single-error-correct, double-error-detect design, often abbreviated SECDED. The memory controller writes check bits with each protected data word, recomputes them on a read, and uses the resulting syndrome to locate a supported single-bit error. Parity-only memory can report some errors but cannot reconstruct the missing bit. Exact correction strength varies by CPU, DRAM organization, memory interleaving, and platform features, so “ECC” is not one universal protection level.
Common server ECC designs correct a supported single-bit error and report a detected multi-bit error. This error correction improves data integrity, but exact protection varies with the memory controller, DRAM width, platform features, and firmware. Some computer systems add memory sparing, patrol scrubbing, lockstep, chip-level protection, or retry mechanisms to address additional RAM error patterns.
ECC reduces the chance that a correctable memory-cell error reaches software as bad data. It does not protect against every failure. A defective CPU, bad power supply, overheating module, firmware bug, storage error, application bug, or multi-device fault can still corrupt data or stop a server. Backups, validation, monitoring, and tested recovery remain necessary.
Corrected and uncorrected errors
A corrected error can be fixed before software uses the data, then logged by the hardware or operating system. A rising count on one DIMM, channel, or CPU can warn of a failing part or thermal problem. An uncorrected error means the platform cannot reconstruct trusted data. The machine may report a hardware error, take a page offline, restart, or stop to avoid continuing with unknown state.
DDR5 on-die ECC versus system-level ECC RAM
DDR5 DRAM includes on-die error correction inside each memory chip. It helps the chip deliver reliable data from its internal cells, but its internal corrections are not a replacement for platform error reporting. On-die ECC does not add the external check-bit path used by system-level ECC between the memory controller and the module. A standard non-ECC DDR5 UDIMM does not become server ECC RAM because its DRAM chips use on-die ECC.
Server memory types: ECC UDIMM, RDIMM, LRDIMM, and MRDIMM
| Module type | Typical role | Compatibility rule |
|---|---|---|
| ECC UDIMM | Entry server, NAS, small workstation | Needs a platform built for unbuffered ECC |
| RDIMM | Mainstream and high-capacity server | Needs a registered-memory platform |
| MRDIMM | Selected high-bandwidth DDR5 server | Needs explicit CPU and board support |
ECC UDIMM
An ECC unbuffered DIMM connects its DRAM signals more directly to the processor's memory controller and carries the extra data width needed for platform ECC. It suits small servers with a limited number of sockets and moderate capacity. Intel documents its Xeon 6 6300-series platform with two DDR5 channels, up to two ECC UDIMMs per channel, and a published maximum platform capacity of 128GB.
ECC UDIMM and ordinary non-ECC UDIMM can look nearly identical. Check the module part number and the board manual. Some desktop processors can address ECC-capable modules but do not expose or enable error correction on every board.
RDIMM
A registered DIMM places a register or registered clock driver between the memory controller and parts of the module. This reduces electrical load and lets server platforms support more memory capacity and channels. Current AMD EPYC and Intel Xeon server platforms commonly use DDR5 RDIMMs.
RDIMM is not a faster substitute for ECC UDIMM. The sockets, electrical design, firmware, and processor support must be built for it. DDR5 RDIMMs and UDIMMs use different keying, and DDR4 systems cannot accept DDR5 modules.
LRDIMM
Load-reduced DIMMs use additional buffering to reduce the load seen by the memory controller and support high-capacity configurations on compatible DDR3 and DDR4 servers. They remain relevant when upgrading installed systems. Do not mix LRDIMMs and RDIMMs unless the server manual explicitly describes a supported combination; most platforms require one module class throughout.
MRDIMM
Multiplexed-rank DIMMs are a DDR5 server-memory type built for higher bandwidth on selected current platforms. Micron publishes MRDIMM products at several capacities and transfer rates, while Intel lists MRDIMM support within parts of the Xeon 6 family. An RDIMM-capable slot does not automatically support MRDIMM. The CPU generation, board routing, BIOS, thermal design, and approved-module list all matter.
Research method and limits
This article uses current processor support documents, motherboard memory specifications, and memory-maker technical resources. No DIMM was stress-tested, heated, overclocked, or subjected to injected bit faults for this work. Vendor validation shows a supported configuration; it does not predict the service life of one module or eliminate the need for backups.
Memory support changes with BIOS releases and processor models. Use the current manual and qualified-parts list for the exact server model, motherboard revision, and installed CPU.
Six ECC RAM compatibility checks
1. DDR generation
DDR3, DDR4, and DDR5 have different electrical interfaces and key positions. They are not interchangeable. A server sold across several generations may have a similar name while using different boards and memory.
2. Module class
Identify ECC UDIMM, RDIMM, LRDIMM, 3DS RDIMM, or MRDIMM. Kingston's server-memory guidance warns that different module types cannot be mixed in one system. Even when older DDR4 module classes can enter a similar-looking socket, the server may refuse to boot.
3. CPU and motherboard support
The processor contains the memory controller, while the motherboard provides routing, slots, firmware, and power. Both must support the module. Check the CPU documentation, motherboard manual, qualified-parts list, and BIOS or UEFI settings. Confirm that ECC is enabled and reported in firmware rather than assuming that a successful boot proves error correction. Support can differ between Intel and AMD processors and between boards using the same socket.
4. Capacity and organization
A module's capacity, rank count, DRAM width, and 3DS construction affect support. A board may list 32GB and 64GB RDIMMs but require a newer BIOS for a 256GB 3DS RDIMM. Product listings that mention only capacity omit part of the compatibility question.
5. Speed and DIMMs per channel
A fast module runs only at a speed supported by the CPU, board, module organization, and population. Adding a second DIMM per channel often lowers the maximum transfer rate. Mixed speeds generally run at a common supported setting rather than each module's label speed.
6. Validation and firmware
Use the server's memory configurator, board qualified-vendor list, or tested-memory list. Match the full manufacturer part number, including suffixes. Record the BIOS required for the CPU and memory before installation, and keep a supported recovery path for the update.
ECC memory channels, ranks, and population order
A memory channel is an independent data path between the processor and DIMMs. Populating more channels can increase aggregate bandwidth. A twelve-channel CPU with only two DIMMs installed may have enough capacity but leave most of its available memory bandwidth unused.
Follow the socket labels and sequence in the board manual. The first slot on a channel is not always the one physically closest to the CPU. On multi-socket systems, install memory attached to each active processor and balance the layout for the workload's NUMA behavior.
One or two DIMMs per channel
One DIMM per channel, written 1DPC, often permits a higher transfer rate. Two DIMMs per channel, or 2DPC, can provide more total capacity at a lower supported speed. That trade is workload-dependent. A database limited by capacity may gain more from 2DPC; a compute job limited by bandwidth may prefer one faster DIMM on every channel.
Ranks
A rank is a group of DRAM devices that the controller accesses together. Single-, dual-, quad-, and higher-rank modules place different loads on the channel. More ranks can improve interleaving in some workloads but may reduce the supported speed or module count. Use the platform table rather than treating rank as a universal performance score.
How much ECC RAM a server needs
Start with measured working sets and reserve. The operating system, file cache, services, virtual machines, containers, database buffers, storage metadata, and management agents all use memory. Add growth based on a named workload, not an arbitrary percentage.
File server or NAS
Capacity depends on storage software, caching policy, deduplication, compression, metadata, client count, and other services. Follow the storage platform's sizing guidance. ECC lowers memory-error risk but cannot repair a bad storage design or replace backups.
Virtualization host
Add reserved host memory, each guest's active demand, failover needs, and overhead. Avoid allocating every advertised gigabyte; the host needs room to manage pressure and migrations.
Database or analytics server
Database caches can use large memory pools, while in-memory and analytical workloads may be limited by capacity or bandwidth. Measure the workload and check whether adding channels or moving to a higher-capacity module class changes the bottleneck.
Small application server
An entry platform with ECC UDIMMs can be enough for a web stack, directory service, backup target, or edge application. More expensive RDIMM capacity adds little when CPU, storage, or network limits arrive first.
Monitor correctable and uncorrectable ECC errors
Confirm that the BIOS or BMC reports the expected total, speed, channel population, and ECC mode. Then watch machine-check records, BMC system-event logs, operating-system hardware-error reports, and vendor management tools. Preserve the DIMM slot and serial mapping so an alert can identify the physical module.
One isolated corrected event does not prove a DIMM is failing. A growing count, repeated events on one address range, errors that follow a module, or temperature-linked bursts deserve investigation. Follow the server vendor's threshold and service procedure. Moving DIMMs without a plan can erase the pattern or create a new seating problem.
Track corrected errors, uncorrectable errors, patrol-scrub events, slot identity, temperature, voltage, workload, firmware version, and time. Any uncorrectable event on a production system deserves immediate triage because trusted data may not be recoverable, but replacement policy should still follow the platform vendor's diagnostics and guidance. A sustained rise in correctable errors is more informative than a universal one-size-fits-all counter threshold.
Before replacing a DIMM
- Save logs, firmware versions, slot labels, and event timing.
- Check cooling, dust, fan health, and reported memory temperature.
- Run vendor diagnostics during a maintenance window.
- Confirm whether the fault follows a module, slot, channel, or processor.
- Replace with an approved matching part and restore balanced population.
- Retest and continue watching the error counters.
When to choose ECC RAM or non ECC RAM
Strong fit
ECC belongs in production servers, virtualization hosts, databases, storage systems, scientific machines, and workstations where a silent memory error has a meaningful cost. It is also reasonable for a home server holding valued data when the platform supports it without forcing poor tradeoffs elsewhere.
When non-ECC may be reasonable
A disposable test machine, gaming PC, or replaceable client workstation may prioritize cost, clock tuning, or broad module choice. Many personal computers therefore use non ECC RAM. Do not call non-ECC memory equivalent to ECC memory; assess the different error-detection capability and business impact explicitly.
Who should avoid unvalidated ECC parts
Anyone who needs a supported production configuration should avoid random marketplace modules, mixed kits, altered heat spreaders, and parts whose full label cannot be verified. A lower unit price is weak value when the server fails to train memory or loses vendor support.
Price the complete memory plan
Compare cost per usable gigabyte after the population rule is applied. Filling every channel with small modules can deliver bandwidth but leave no clean upgrade path. Starting with very large modules can cost more and reduce the number of populated channels.
Include spare strategy, warranty, replacement availability, downtime, and the possibility that a later capacity tier requires a different module organization. Platform-specific memory from a server vendor may cost more but can carry stronger compatibility and service coverage.
The final ECC RAM purchase order should identify the full module part number, DDR generation, ECC UDIMM/RDIMM/LRDIMM/MRDIMM class, capacity, rank, speed, quantity, supported server model, required firmware, warranty, and RMA process. Keep the board's memory QVL or configurator result with the record. That evidence is more useful than a marketplace listing that says only “ECC compatible.”

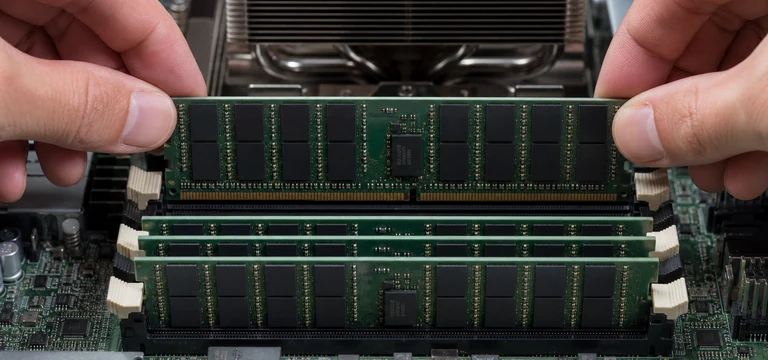

Installation checklist
- Shut down and remove power as directed by the server manual.
- Use static-control procedures and handle modules by their edges.
- Open both latches where the socket design provides them.
- Align the key; never force a DIMM into a different memory class.
- Seat each module evenly and confirm both latches close.
- Verify capacity, speed, ECC state, channels, and logs after boot.
After installation, run the server maker's memory diagnostics and a sustained memory stress test during a maintenance window. Save the test configuration and results, then check the BMC, operating-system, and machine-check logs again. A clean test does not guarantee that a DIMM will never fail, but it can expose seating, population, temperature, or compatibility problems before production use.
Questions readers ask
Can I use ECC RAM in a normal motherboard?
Only if the CPU, board wiring, chipset or system design, and firmware support that exact ECC memory module type. A successful boot may still leave ECC disabled, so verify error correction in BIOS and operating-system hardware logs.
Can ECC and non-ECC RAM be mixed?
Do not plan on it. The system may refuse to boot or may disable ECC. Use one validated module class and matched population.
Is registered memory the same as ECC?
No. RDIMM describes registered signaling, and server RDIMMs also support ECC. ECC UDIMMs provide ECC without the same register design.
Does ECC RAM prevent crashes or data corruption?
It can correct supported memory errors and reduce one source of crashes or data corruption. It cannot prevent failures caused by software, storage, power, cooling, or unsupported hardware.
Is faster ECC memory always better?
No. Workloads may care more about capacity or channel count. The platform may also lower the transfer rate when more DIMMs or ranks are installed.
Sources
- Intel Xeon 6 6300-series platform memory support, checked July 16, 2026.
- Micron DRAM module families and specifications, checked July 16, 2026.
- Kingston ECC memory technical overview, checked July 16, 2026.
